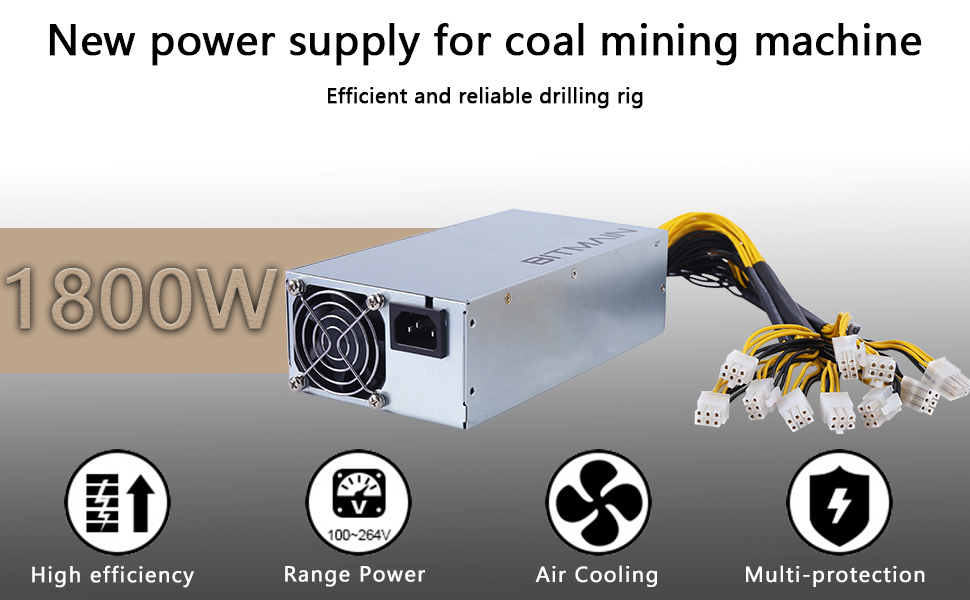

The Bitmain PSU APW7 1800w is a heavy-duty power supply that is designed primarily for Bitcoin mining hardware. It works with Bitmain AntMiner S9 or L3+ or Z9 Mini or D3 w/ 10 Connector, making it versatile and ideal for mining operations. One of the standout features of this power supply is the fact that it is compatible with both 110V and 220V outlets, making it easy to set up and use. It automatically switches between voltages, so there’s no need for an external switch or adjustment. It’s worth noting that if you’re using this power supply with a 110V outlet, you will only have about 1000W to work with, whereas plugged into 220V allows about 1800W. This means that you’ll get the best performance out of this power supply when using it with a 220V outlet. Overall, the Bitcoin 1800W Power Supply is a reliable and powerful option for those in need of a heavy-duty power supply for Bitcoin mining hardware.
Specifications
| DC Voltage | 12.0V |
| Rated Current(220V input) | 150A |
| Rated Power (220V input) | 1800W |
| Rated Current(110V input) | 83.3A |
| Rated Power (110V input) | 1000W |
| Ripple & Noise | <1% |
| Voltage Accuracy | 12.0-12.5V |
| Source Regulation | <1% |
| Load Regulation | <1% |
| Setup, Rise Time | <2S |
| Power off Protection Trip Time | >10mS |
| Voltage Range | 100-264V AC |
| Frequency Range | 47-63Hz |
| Power Factor | >0.99(full load) |
| Leakage Current | <1.5mA（220V 50Hz） |
| Low-voltage Input | 80-89V AC |
| Output Short Circuit | Yes |
| Output Overcurrent | 150-200A |
| Overheat Protection | Yes |
| Operating Temperature | -20-60℃ |
| Operating Humidity | 20%-90%RH(non-‐condensing) |
| Altitude | < 2000m |
| Dimensions | 206*110*62mm |
| Weight | 2.0kg |
| Cooling Mode | force-‐air cooling |
| Noise | 43DB |
Features:
Bitcoin Mining Hardware provides you best and powerful mining rig from which you can mine continuously crypto currency whenever and where ever you want.
1.Using a new large-capacity large magnetic ring material, the performance is very stable.
2.Efficiency, very quiet, stable performance.
3.Heavy-duty protections, including Over Voltage Protection, Under Voltage Protection, Over Current Protection, Over Power Protection, and Short Circuit Protection.
4.he conversion rate is as high as over 95% (while the conversion rate of passive PFC is usually below 70%), and the efficiency is as high as 95%, which can reduce electricity bills. More energy saving!
5.With cooling fan, safer for using this.
PCI-E Interface Rig-10XPCle 6Pin
PCI-E Interface Rig: In addition, because the APW7 interface is based on PCI-E, which is utilized by the majority of contemporary bitcoin mining hardware power schemes, Perfect Design for Antminer S9 or L3+ or Z9 Mini or D3 and other brand min
Cable Length:38cm
Connectors:6 PIN
Number of Interfaces:10
Support back wiring, easy for user to install machine, effective wear resistance

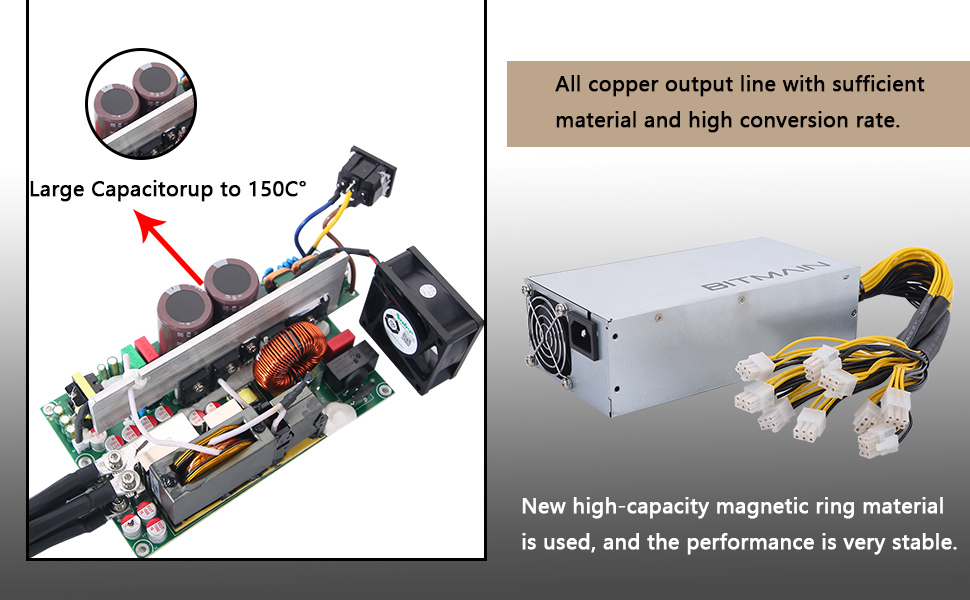

High-quality capacitor solution, long-lasting and durable, up to 150℃
The power supply can be used to limit the output current to no more than 10%-50% of the rated output power.
When the +12.4V output is short-circuited, it will be short-circuit
When the output current exceeds 10%-50% of the rated output current, it will over-current protection
